XMC2 XILINX CPLD MODULE
- Product Code: XMC2
- Availability: 7
23.00€

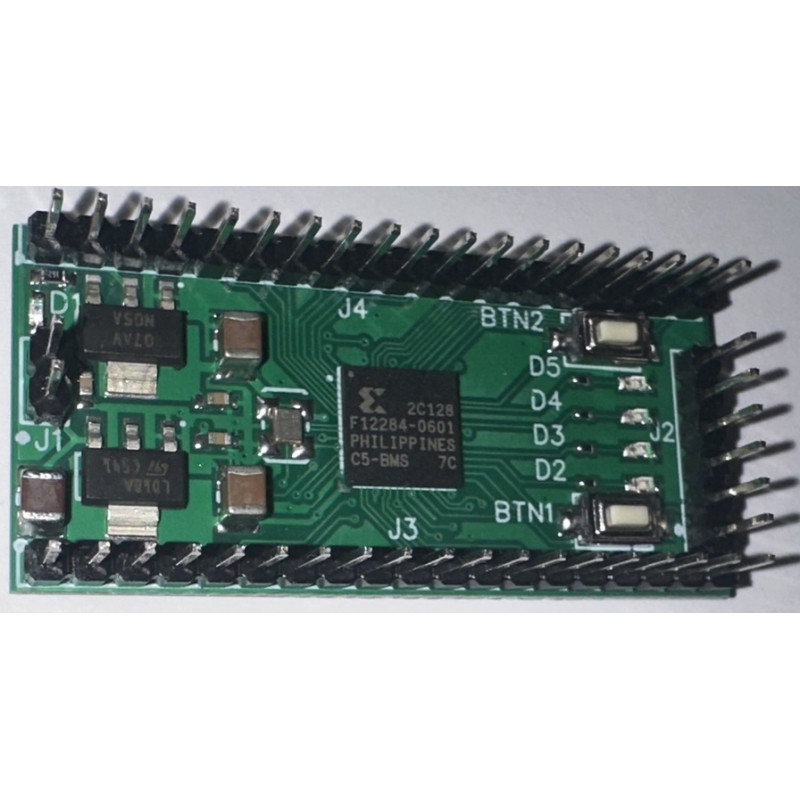

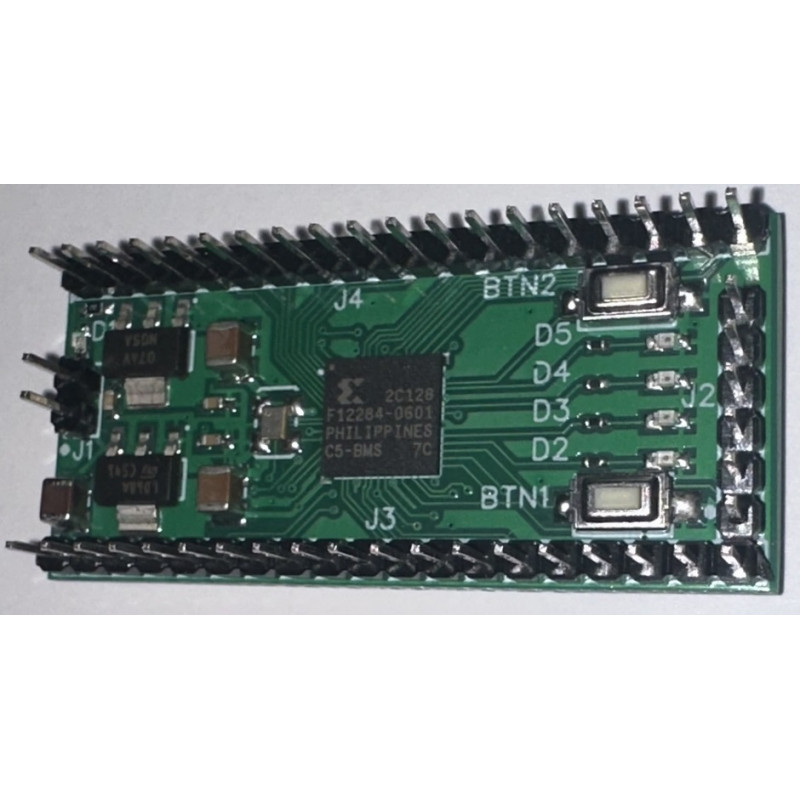

XILINX COOLRUNNER-2 XMC2-128 CPLD module is a low cost and easy to use tool. Designed for rapid prototyping and implementing CPLD designs. This module can be used independently, for education, or can be used as core module, for a bigger design.
Features
1) XILINX XC2C128 CP132 7C CPLD
• 128 Logic Cells
• Maximum system frequency – 152 MHz
• On-The-Fly Reconfiguration (OTF)
• IEEE1149.1 JTAG Boundary Scan
• Flexible clocking modes
• Advanced design security
• Open-drain output option for Wired-OR and LED drive
• Optional bus-hold, 3-state or weak pullup on select I/O pins
• Guaranteed 1,000 program/erase cycles, 20 year data retention
2) Onboard IO peripherals
• 4 LEDs
• 2 push buttons
• 25 MHz CMOS crystal oscillator
3) Handy configuration

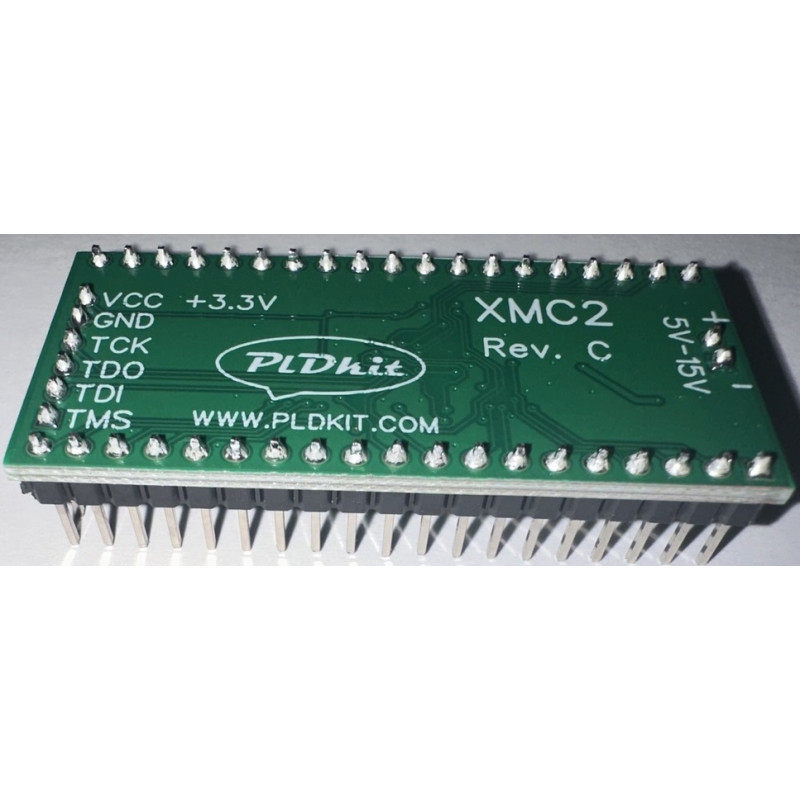

• Onboard JTAG header
4) Onboard power supply
• Input voltage range 5V – 15V
• 3.3V LDO
• 1.8V LDO
• POWER-ON LED
5) 36 independent I/O routed to the connectors
• Two 1x19 male connectors (18 IO, 1 VCC or 1 GND)
• 2.54mm pitch for all connectors
• 3.3V IO voltage
• Small 25x50mm PCB
