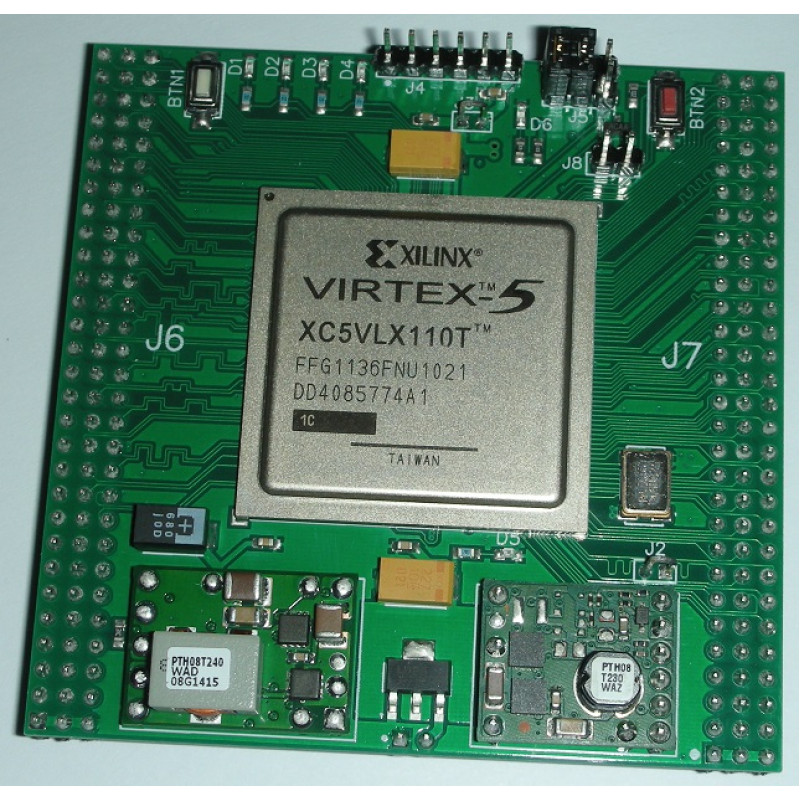

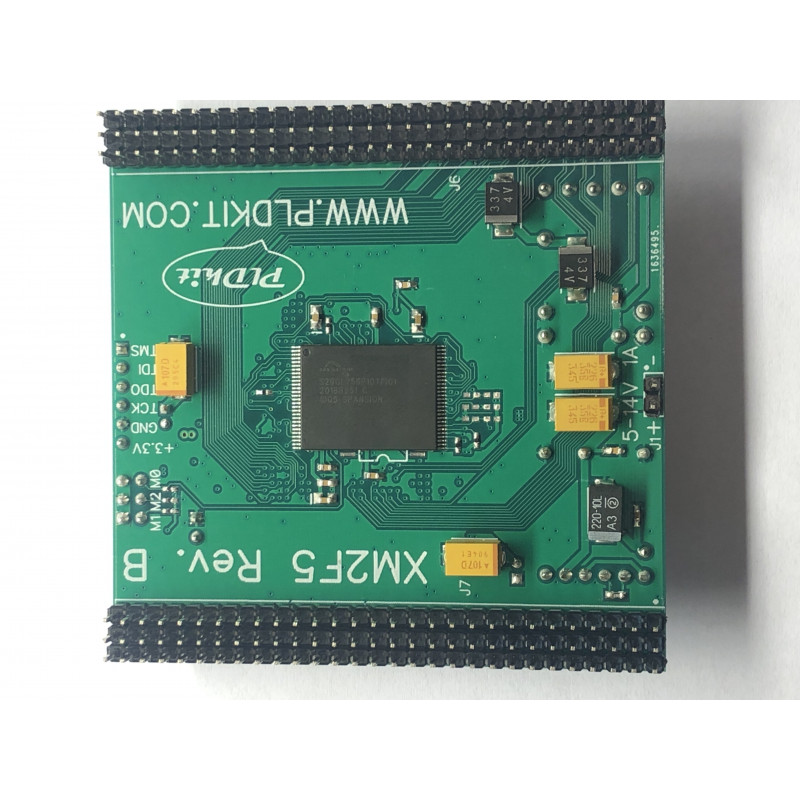

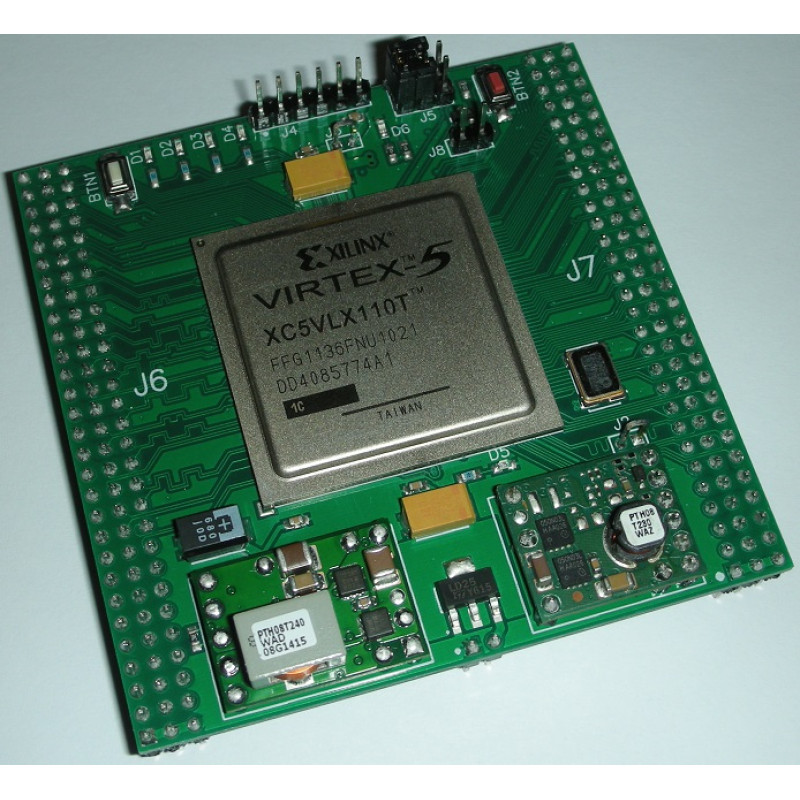

XM2F5 XILINX FPGA MODULE

XILINX VIRTEX-5 XM2F5 FPGA module is designed for rapid prototyping and implementing FPGA designs. Board can be used for educational purposes. It can work independently or can be used as a control module in the bigger design.

Features

1) XILINX XC5VLX110T FPGA

• 17280 Virtex-5 Slices (110592 Logic Cells)
• 64x DSP48E Slices
• 148x 36Kb RAM blocks (5328Kb, 550MHz)
• 6 Clock Management Tiles
• 680 User I/O (217 routed on this board)

2) SPANSION S29GL256P10 FLASH

• 256Mbit
• BPI Interface
• FPGA configuration
• Post-configuration access
• 100,000 erase cycles per sector typical
• 20-year data retention typical

3) Onboard IO peripherals

• 50MHz CMOS oscillator
• 4 LEDs
• 1 push button

4) Handy configuration

• Standard 2.54mm JTAG header
• Mode select jumpers
• DONE LED
• Push button for manual initiation of the configuration process
• Header for external reset
• Reset supervision by the voltage monitor

5) Onboard power supply

• 3.3V 6A (IO, PERIPHERALS)
• 2.5V 0.8A (VCCAUX)
• 1V 10A (CORE VOLTAGE)
• Input voltage range 5V – 14V
• POWER-ON LED
• J2 and J3 jumpers to use external I/O voltage 1.14V-3.45V

6) 168 independent I/O routed to the connectors

• J6 3x29 male pin connector (84 IO, 3 GND)
• J7 3x29 male pin connector (84 IO, 3 VCC)
• 2.54mm pitch for all connectors
• 1.14V-3.45V External I/O voltage can be used
• 17 differential pairs
• Small 74x74mm PCB designed to fit on the prototyping board with 2.54mm pitch
