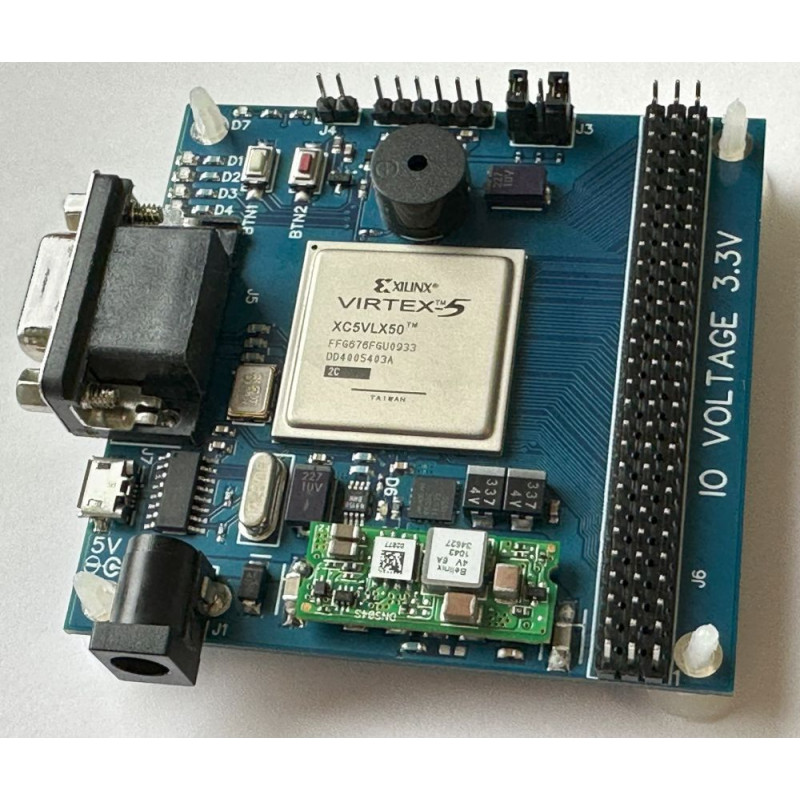

XK2F5 XILINX FPGA KIT

The Xilinx Virtex-5 XK2F5 FPGA kit is designed for rapid prototyping and FPGA design implementation. The board is suitable for educational purposes and can operate as a standalone unit or as a control module within a larger system.

Features

1) XILINX XC5VLX50 FFG676 2C FPGA

• 7200 Virtex-5 Slices (46080 Logic Cells)
• 48 DSP48E Slices
• 48x 36Kb RAM blocks (1728Kb, 550MHz)
• 6 Clock Management Tiles
• 440 User I/O (135 routed on this board)

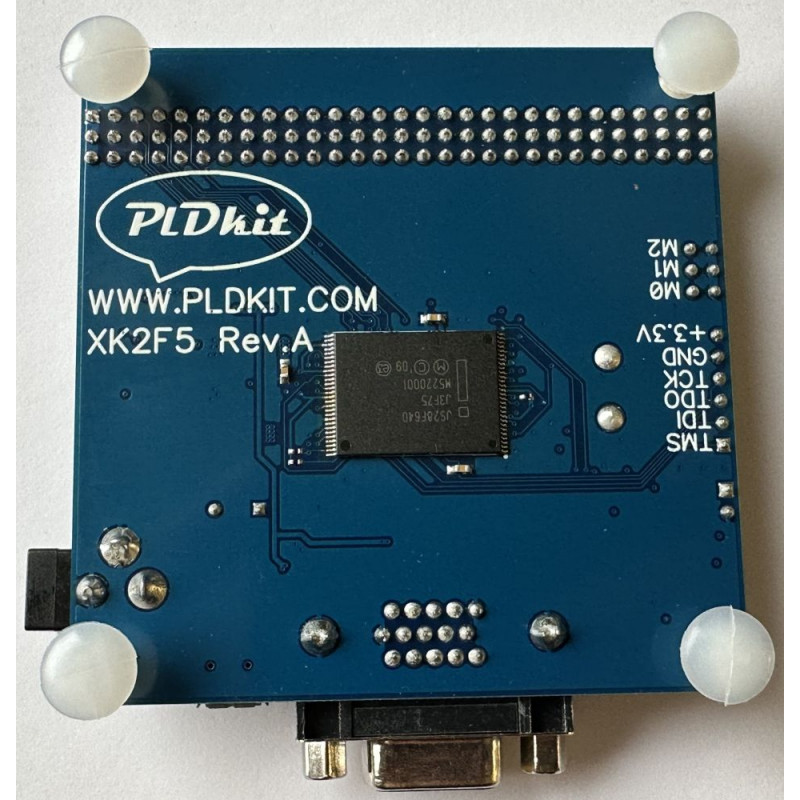

2) INTEL JS28F640J3 FLASH

• 64Mbit
• BPI Interface
• FPGA configuration
• Post-configuration access
• 100,000 erase cycles per block

3) Onboard IO peripherals

• CH340G USB UART port
• 50MHz CMOS oscillator
• 4 IO LEDs
• IO push button
• Speaker
• VGA port

4) Handy configuration

• Standard 2.54mm JTAG header
• Mode select jumpers
• DONE LED
• Push button for manual initiation of configuration process
• Header for external reset
• Reset supervision by voltage monitor

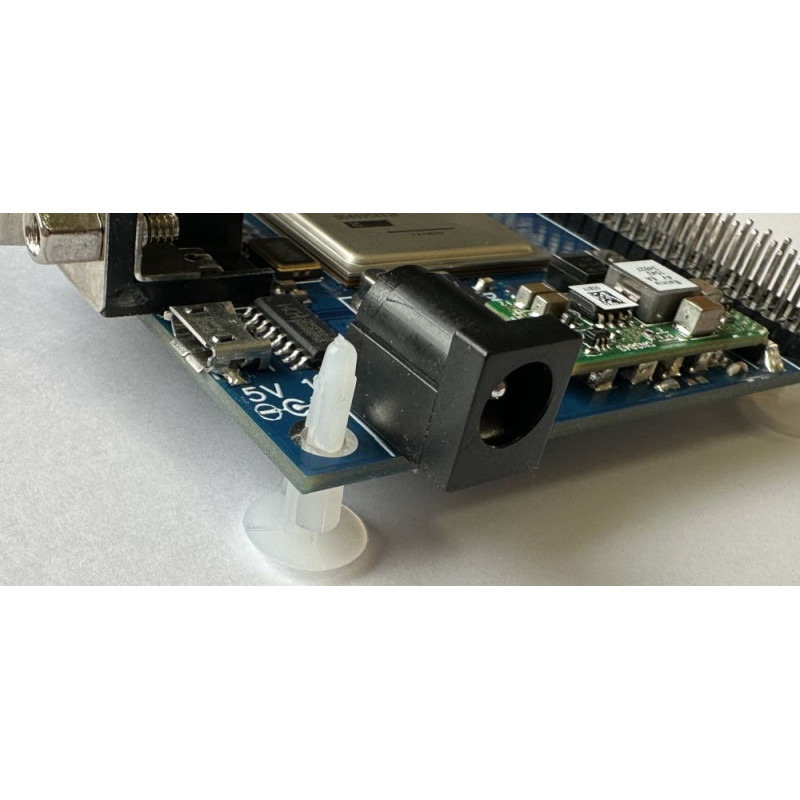

5) Onboard power supply

• 3.3V 6A (IO, PERIPHERALS)
• 2.5V 1.5A (VCCAUX)
• 1V 4A (CORE VOLTAGE)
• Input voltage range 4.5V – 5.5V
• POWER-GOOD LED

6) 81 independent I/O routed to the connector

• J6 3x29 male pin connector (81 IO, 3 VCC, 3 GND)
• 2.54mm pitch
• 3.3V I/O voltage
• Small 74x75mm PCB

XK2F5-64 Rev. A
